- IP69K rated temperatures up to 176°F (80°C).
- IP69K rated pressures up to 1,450psi (100 Bar)
- Approximate total system weight of ~14lbs (6.3kg).
- Machined from 6061 T6 solid billet aluminum.
- Stainless steel fasteners.
- Engineered with three (3) different lens options: Borax high temperature lens, laminated glass lens, or Lexan (polycarbonate high impact) lens.
- Anodize Type II
- Lens and enclosure lid utilizes two (2) silicone high temperature O-rings.
- Scanner mounting bracket utilizes two (2) buna O-ring sealing screws.
- Cable is sealed using JB Weld High Heat Epoxy.
- The enclosure is equipped with three (3) NPT ports. Two (2) of which may be used for internal air cooling and the third (3rd) port for the use of a thermocouple if desired.
- Stainless steel mounting hardware for the HDPL-BALLBASE and compatible Keyence Scanners included.
- To inquire about high temperature heat shields, contact Sales@ADandD.com with application conditions.
- All statements accurate, when enclosure is assembled per instructions.

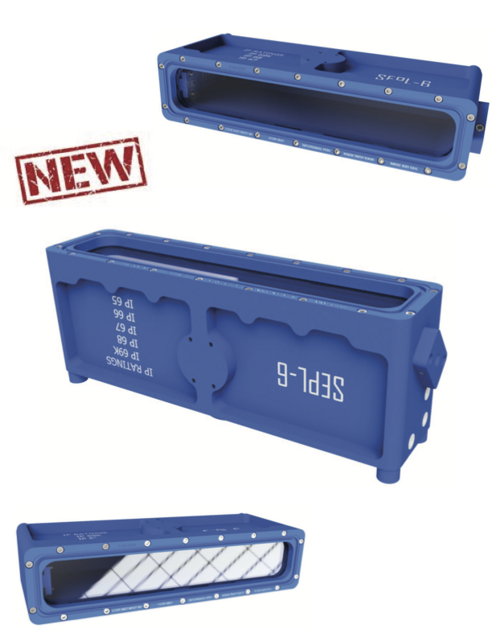

P/N SEPL-6 - Scanner Enclosure 6
Below are the compatible products for SEPL-4. Click any of these products to see an example setup.
Keyence IV3-G500 ca/ma
Keyence IV3-G600 ca/ma
Keyence IV3-LG5c/m
Keyence IV3-LG6c/m
Keyence OP-88642
Keyence OP-88643
Keyence OP-88646
Keyence OP-88647

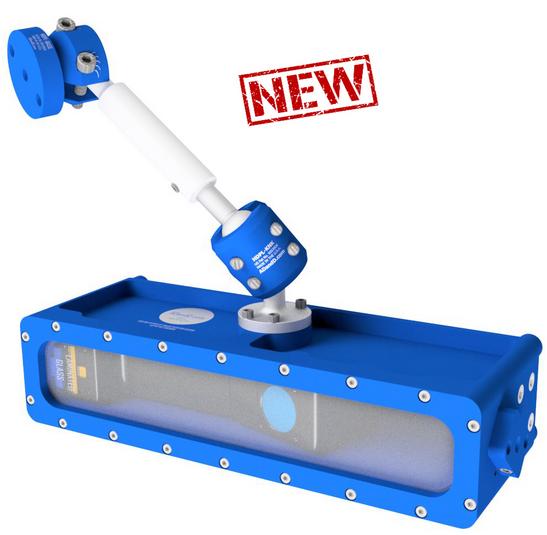

Scanner Enclosure SEPL-6 shown mounted to The HDPL Series product. See details at bottom of this page.
The SCANNER EnclosureS
- With an IP68 Rating*, the CEPL-1 enclosure withstands dirt and dust, and is resistant to submersion up to a maximum depth of 4.9 feet (1.5 meters) underwater for up to 30 minutes. The Enclosure Series is compatible with the HDPL Pop-Link Series.
- Made from anodized aluminum with stainless steel fasteners.
- Stainless steel mounting hardware for the HDPL-BALLBASE and compatible Keyence Scanners included.
- Sold with soda lime glass lens.
- All statements accurate, when enclosure is assembled per instructions.

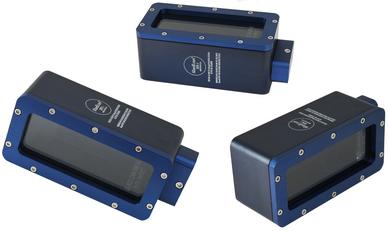

P/N SEPL-1 - Scanner Enclosure 1
Click here for IP69K Test Results
Click below for a video of the testing process.
Click here for IP69K Test Results
Click below for a video of the testing process.
- IP69K rated temperatures up to 176°F (80°C).
- IP69K rated pressures up to 1,450psi (100 Bar).
- Approximate total system weight of ~14lbs (6.3kg).
- Machined from 6061 T6 solid billet aluminum.
- Stainless steel fasteners.
- Engineered with three (3) different lens options: Borax high temperature lens, laminated glass lens, or Lexan (polycarbonate high impact) lens.
- Anodize Type II
- Lens and enclosure lid utilizes two (2) silicone high temperature O-rings.
- Scanner mounting bracket utilizes two (2) buna O-ring sealing screws.
- Cable is sealed using JB Weld High Heat Epoxy.
- The enclosure is equipped with three (3) NPT ports. Two (2) of which may be used for internal air cooling and the third (3rd) port for the use of a thermocouple if desired.
- Stainless steel mounting hardware for the HDPL-BALLBASE and compatible Keyence Scanners included.
- To inquire about high temperature heat shields, contact Sales@ADandD.com with application conditions.
- All statements accurate, when enclosure is assembled per instructions.
Below are the compatible products for SEPL-5. Click any of these products to see an example setup.

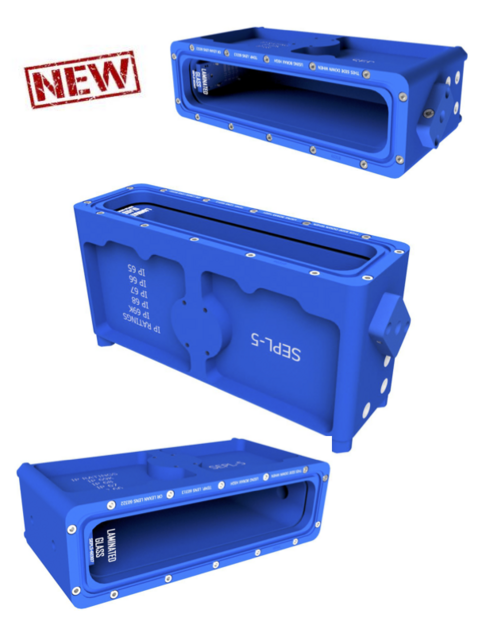

P/N SEPL-5 - Scanner Enclosure 5

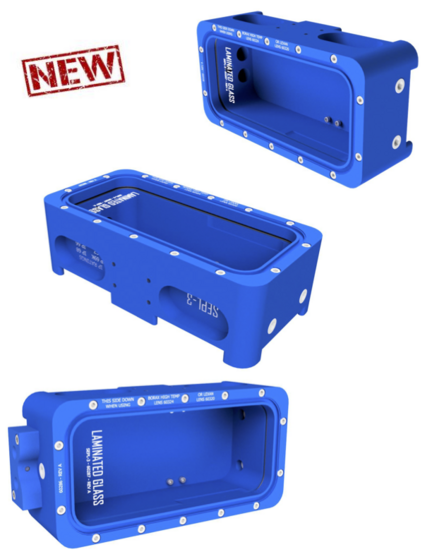

P/N SEPL-3 - Scanner Enclosure 3
Click here for IP69K Test Results
Click below for a video of the testing process.
The Camera Enclosure
Click on the product you are using to see how it mounts to the Camera Enclosure.
Click here for IP69K Test Results
Click below for a video of the testing process.
The eNCLOSURE Series
- The SEPL-1 has an IP68 Rating*, withstanding dirt and dust, and resistant to submersion up to a maximum depth of 4.9 feet (1.5 meters) underwater for up to 30 minutes. The Enclosure Series is compatible with the HDPL Pop-Link Series.
- Made from anodized aluminum with stainless steel fasteners.
- Stainless steel mounting hardware for the HDPL-BALLBASE and compatible Keyence Scanners included.
- Sold with soda lime glass lens.
- All statements accurate, when enclosure is assembled per instructions.
Click on the product to see how it mounts to the Scanner Enclosure.
- IP69K rated temperatures up to 176°F (80°C).
- IP69K rated pressures up to 1,450psi (100 Bar).
- Approximate total system weight of ~14lbs (6.3kg).
- Machined from 6061 T6 solid billet aluminum.
- Stainless steel fasteners.
- Engineered with three (3) different lens options: Borax high temperature lens, laminated glass lens, or Lexan (polycarbonate high impact) lens.
- Anodize Type II
- Lens and enclosure lid utilizes two (2) silicone high temperature O-rings.
- Scanner mounting bracket utilizes two (2) buna O-ring sealing screws.
- Cable is sealed using JB Weld High Heat Epoxy.
- The enclosure is equipped with three (3) NPT ports. Two (2) of which may be used for internal air cooling and the third (3rd) port for the use of a thermocouple if desired.
- Stainless steel mounting hardware for the HDPL-BALLBASE and compatible Keyence Scanners included.
- To inquire about high temperature heat shields, contact Sales@ADandD.com with application conditions.
- All statements accurate, when enclosure is assembled per instructions.
Below are the compatible products for SEPL-3. Click any of these products to see an example setup.
Keyence IV3-400 ca/ma
Keyence IV3-500 ca/ma
Keyence IV3-600ca/ma
Keyence IV3-L4c/m
Keyence IV3-L5c/m
Keyence IV3-L6c/m
Keyence OP-88640
Keyence OP-88641
Keyence OP-88644
Keyence OP-88645
P/N SEPL-4 - Scanner Enclosure 4
Pop-Link Mounting Systems

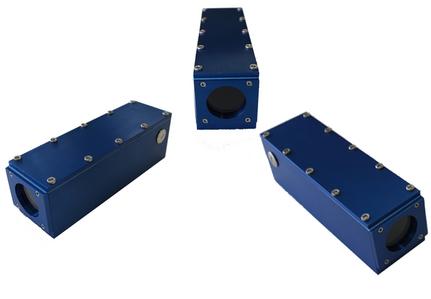

P/N CEPL-1 - Camera Enclosure 1
Mounting
Made
Easy!
- IP69K rated temperatures up to 176°F (80°C).
- IP69K rated pressures up to 1,450psi (100 Bar).
- Approximate total system weight of ~14lbs (6.3kg).
- Machined from 6061 T6 solid billet aluminum.
- Stainless steel fasteners.
- Engineered with three (3) different lens options: Borax high temperature lens, laminated glass lens, or Lexan (polycarbonate high impact) lens.
- Anodize Type II
- Lens and enclosure lid utilizes two (2) silicone high temperature O-rings.
- Scanner mounting bracket utilizes two (2) buna O-ring sealing screws.
- Cable is sealed using JB Weld High Heat Epoxy.
- The enclosure is equipped with three (3) NPT ports. Two (2) of which may be used for internal air cooling and the third (3rd) port for the use of a thermocouple if desired.
- Stainless steel mounting hardware for the HDPL-BALLBASE and compatible Keyence Scanners included.
- To inquire about high temperature heat shields, contact Sales@ADandD.com with application conditions.
- All statements accurate, when enclosure is assembled per instructions.
